Double Strand Concertina Tape BTO-22 Razor Barbed Wire Coil Galvanized
Product Overview
Razor Barbed Wire, also known as concertina razor wire, razor fencing wire, razor blade wire, or dannert wire, is a modern security fencing material manufactured from hot-dipped galvanized steel sheets or stainless steel sheets. Featuring sharp blades and strong core wire, this product offers superior protection, enhanced fencing strength, easy installation, age resistance, and long-lasting durability.
Technical Specifications
Materials: High quality low carbon steel wire, PVC wire (available in blue, green, yellow, and other colors)
Weaving Method: Twisting and weaving
Primary Uses: Grass boundary protection, railway security, highway fencing, and perimeter security applications
Product Characteristics
Manufacturing Technology: Wire core with precision-punched blades wrapped around the core wire in a single manufacturing process
Key Features: Superior protection capabilities, excellent intimidation properties, easy installation, and extended service life
Available Types: BTO-10, BTO-12, BTO-15, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65
Configuration Shapes: Linear, cross-type, linear coil-type, cross-coil type
Application Areas: Border quarantine, military facilities, prisons, villa areas, military bases, airports, and high-security installations

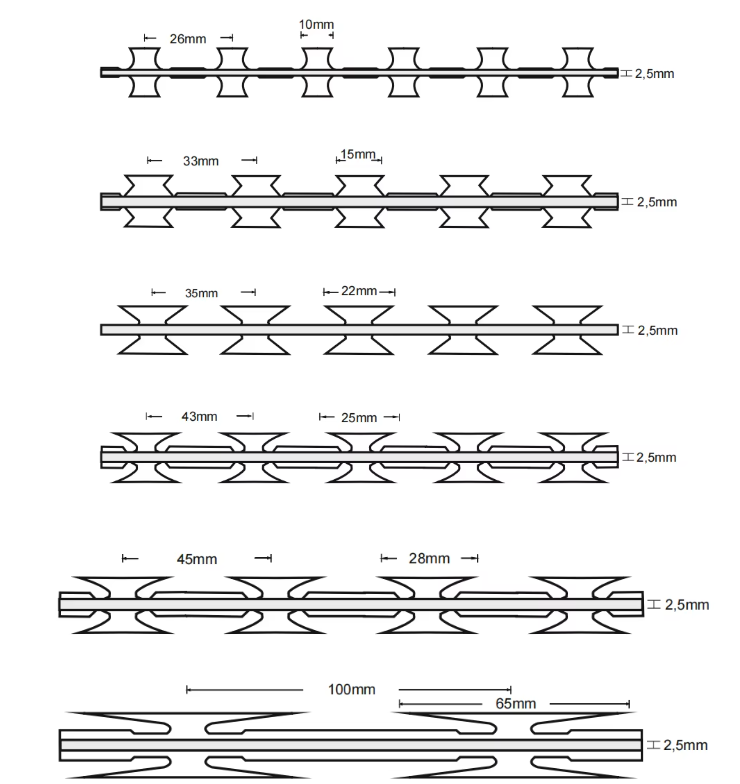

Detailed Specifications
| Reference Model |
Thickness (mm) |
Wire Diameter (mm) |
Barb Length (mm) |
Barb Width (mm) |
Barb Spacing (mm) |
| BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
| BTO-15 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
| BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
| BTO-28 |
0.5±0.05 |
2.5±0.1 |
28 |
15 |
45±1 |
| CBT-30 |
0.5±0.05 |
2.5±0.1 |
30 |
18 |
45±1 |
| CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±1 |
| CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±1 |
Key Features
- Sharp edges effectively deter intruders and thieves
- High stability, rigidity, and tensile strength prevents cutting or destruction
- Resistant to acid, alkali, and harsh environmental conditions
- Excellent corrosion and rust resistance
- Compatible with other fencing systems for enhanced security
- Easy installation, removal, and maintenance
- Durable construction ensures long service life
Applications
Double twist barbed wire provides high-level security fencing fabricated with high-tensile wire. The design effectively frightens and stops aggressive perimeter intruders with piercing razor blades that make climbing and touching extremely difficult. Widely used in prisons, detention facilities, government buildings, and national security installations. Also popular for residential properties, cottage fencing, and private building security.

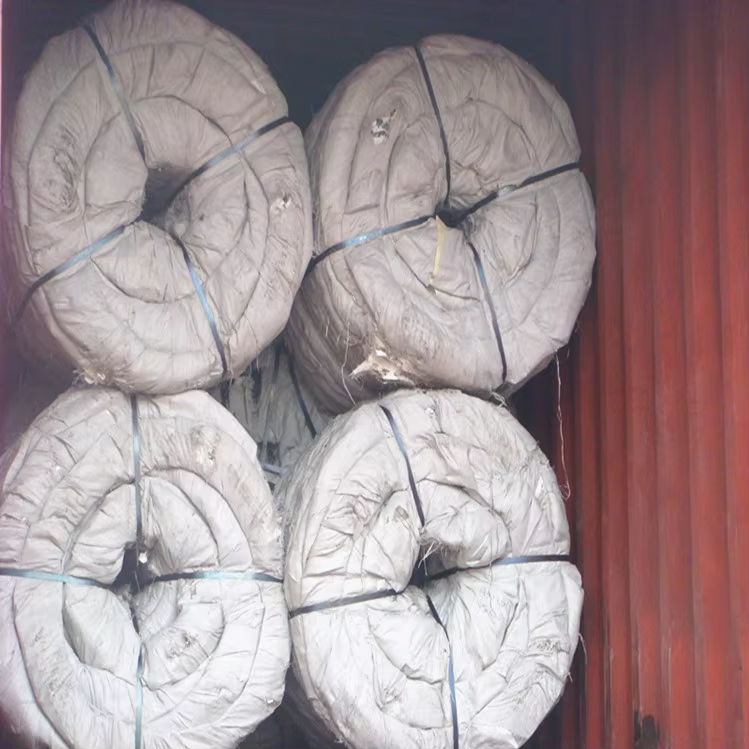

Packaging Options
- Compression rolls: 5 rolls, 10 rolls, or more rolls as one bundle
- Water-proof paper inside with woven bag outside
- Carton packaging: 1 roll, 3 rolls, or 5 rolls in one carton
- Custom packaging available as per customer request
Manufacturer Information
Anping LaiDi Wire Mesh Products Co., Ltd. is an integrated industry and trade enterprise located in Anping County, Hebei Province - China's wire mesh production base. The company operates advanced manufacturing machinery and maintains ISO9001:2000 international quality standards. Specializing in gabion mesh, steel mesh, fence mesh, slope mesh, windproof mesh, hook mesh, plastic coated wire, and decorative mesh products. Exports to Europe, South America, Japan, South Korea, United States, Canada, Middle East, and Southeast Asia.
